Overview
Product Overview
VETOO VF1 is an animal-specific Dynamic DR system for intelligent pet imaging — 30 fps dynamic imaging, up to 15-minute fluoroscopy, and optional DSA for interventional procedures. Covers esophageal, pulmonary, and joint guidance, contrast studies, and more. Features a 17×17" flat panel detector, 32kW generator (125kV / 400mA), and veterinary-specific software.
Veterinary Imaging

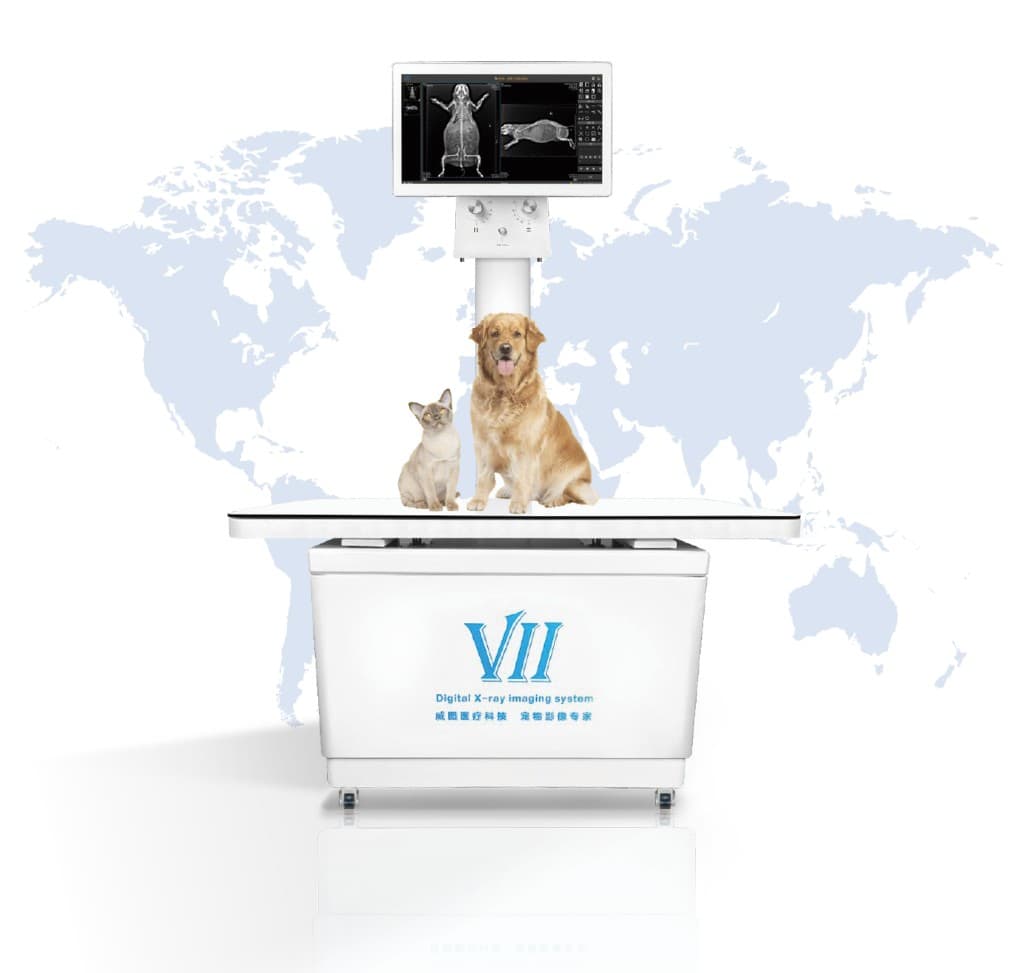

VETOO VF1
Veterinary Dynamic DR System
Next-generation veterinary dynamic digital radiography system
Features & Advantages
Clinical Applications
- Dynamic observation of motor organs — esophagus, lungs, diaphragm, intestine, and trachea
- Orthopedic surgery support: joint placement, nail changes, and bone localization
- Gastrointestinal contrast studies — esophageal peristalsis, gastric emptying, and barium meal evaluation
- Cardiac and pulmonary assessment with contrast agents; optional DSA for interventional procedures
- Extended dynamic video helps reduce misdiagnosis when pets are nervous, trembling, or short of breath
Dynamic DR Technology
- Converts digital X-ray data into both still images and smooth video — beyond static DR alone
- 30 fps dynamic imaging with full static DR high-definition images and advanced measurement tools
- Up to 15 minutes continuous dynamic video mode per session for difficult surgeries and extended observation
- Optional DSA module for angiography-assisted interventional use
- Broader clinical scenarios and higher diagnostic value compared with conventional static DR
Imaging Performance
- 17×17" flat panel detector with cesium iodide evaporation — low radiation, high DQE (~80%), 3.6 Lp/mm limiting resolution
- 32 kW high-power generator (125 kV / 400 mA) — reliable penetration for both large and small pets
- 0.6 / 1.2 mm small focal spot for high-resolution imaging suited to cats, dogs, and other companion animals
- DAEC technology for automatic exposure parameter selection during radiography
Software & Ease of Use
- HD touch screen with intuitive, veterinary-specific software workflow
- Automatic exposure parameter selection — imaging parameters clearly visible and adjustable in real time
- Full-function measurement and imaging tools tailored to veterinary clinical characteristics
- User-friendly interface designed for efficient daily clinic operation
Installation & Site Requirements
- Main unit approximately 205 × 151 × 95 cm; weight 120 kg
- Minimum radiation room size 2 × 1.5 m; door width minimum 65 cm
- 220 V single-phase three-wire power supply with dedicated high-voltage line recommended
Quality & Support
- From Vetoo Med — professional veterinary DR manufacturer with strong independent R&D and national invention patents
- Strict supplier management and quality control with comprehensive pre-sales and after-sales service
- Proven market track record with over 2,800 units installed in China
